When it comes to high - rise building construction, the use of a concrete mixer pump is both a necessity and a challenge. As a supplier of Concrete Mixer Pump, I have witnessed firsthand the unique requirements and challenges that come with operating these machines in high - rise projects. This blog post will delve into the special requirements that need to be considered when using a concrete mixer pump in high - rise building construction.
Understanding the High - Rise Construction Environment
High - rise building construction presents a distinct set of challenges compared to traditional low - rise or ground - level construction. The increased height means that the concrete has to be transported over a much longer vertical distance, which puts additional stress on both the concrete itself and the pumping equipment. The high - rise construction site is often more congested, with limited space for equipment placement and movement. There are also strict safety and regulatory requirements that must be adhered to.
Pressure Requirements
One of the most significant special requirements for using a concrete mixer pump in high - rise construction is the ability to generate sufficient pressure. As the concrete needs to be pumped to great heights, the pump must overcome the gravitational force acting on the concrete column in the delivery pipe. This requires a high - pressure output from the pump. A typical pressure requirement for a high - rise project might range from 20 to 50 MPa, depending on the height of the building.

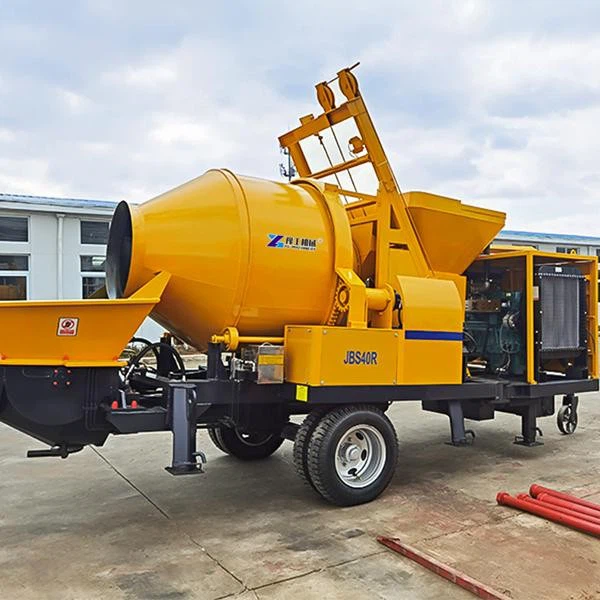

For example, in a 100 - meter high - rise building, the pump needs to generate enough pressure to lift the concrete against gravity and maintain a continuous flow. Our Diesel Concrete Mixer With Pump is designed to meet these high - pressure requirements, ensuring that the concrete can be delivered smoothly to the upper floors of the building.
Conveying Pipe System
The conveying pipe system is another crucial aspect in high - rise concrete pumping. With the increased height, the pipes need to be able to withstand higher pressures without leakage or breakage. The pipes should be made of high - strength materials, such as steel, and have proper joints to ensure a tight connection.
Moreover, the layout of the pipe system must be carefully planned. In a high - rise building, the pipes may need to be routed around structural elements, through narrow corridors, or up vertical shafts. The pipe bends should be minimized as much as possible because each bend increases the resistance to concrete flow and requires additional pumping pressure. Our company provides professional guidance on pipe system design and selection to ensure the efficient operation of the concrete mixer pump in high - rise projects.
Concrete Quality
The quality of the concrete is of utmost importance in high - rise construction. The concrete must have good workability to ensure it can flow easily through the long - distance pipe system without segregating. The slump of the concrete is a key parameter, and it typically needs to be in the range of 180 - 220 mm for high - rise pumping.
Proper mix design is also essential. The use of admixtures, such as superplasticizers, can improve the workability of the concrete while maintaining its strength. Our technical team can offer advice on concrete mix design to meet the specific requirements of high - rise construction, ensuring that the concrete pumped by our Concrete Mixer Pump meets the highest standards.
Safety Measures
Safety is always a top priority in high - rise building construction. When using a concrete mixer pump, operators need to follow strict safety procedures. The pump should be installed on a stable and level surface to prevent tipping during operation. The hoses and pipes should be properly secured to avoid any potential whipping or disconnection, which could cause serious accidents.
Regular maintenance and inspection of the equipment are also necessary. Before each use, the pump should be checked for any signs of wear, damage, or malfunction. Components such as the pump valves, cylinders, and seals should be inspected regularly and replaced if necessary. Our company provides comprehensive after - sales service, including safety training for operators and regular maintenance programs to ensure the safe operation of our concrete mixer pumps in high - rise projects.
Site Space and Accessibility
In high - rise construction sites, space is often limited, especially in urban areas. The concrete mixer pump needs to be compact and easy to maneuver. Our Concrete Pump Trailer offers a portable solution, which can be easily transported and positioned on the construction site.
Accessibility is also a major concern. The pump needs to be located in an area where it can receive a continuous supply of concrete from the mixer trucks and where the delivery pipes can be connected smoothly to the construction site. In some cases, additional equipment, such as boom trucks, may be required to reach the upper floors of the building. Our technical team can assist in site planning and equipment selection to ensure the best possible use of the available space and accessibility on the high - rise construction site.
Operator Skills and Training
Operating a concrete mixer pump in high - rise construction requires a high level of skill and expertise. The operator needs to be familiar with the machine's operation, including the control panel, pressure settings, and troubleshooting procedures. They also need to have a good understanding of the high - rise construction environment and the specific requirements of concrete pumping at great heights.
Our company offers comprehensive training programs for operators. These programs cover everything from basic machine operation to advanced techniques for high - rise concrete pumping. By ensuring that operators are well - trained, we can improve the efficiency and safety of the concrete pumping process in high - rise building construction.
Conclusion
In conclusion, using a concrete mixer pump in high - rise building construction has several special requirements. From generating sufficient pressure and designing an appropriate pipe system to ensuring concrete quality, safety, and proper site planning, every aspect needs to be carefully considered. As a supplier of Concrete Mixer Pump, we are committed to providing high - quality equipment and professional technical support to meet these challenges.
If you are involved in a high - rise building construction project and are in need of a reliable concrete mixer pump, we welcome you to contact us for more information and to discuss your specific requirements. Our team of experts is ready to provide you with the best solutions for your project.
References
- "High - Rise Concrete Construction: Processes and Technologies" by David J. Burgoyne
- "Concrete Pumping Handbook" by the American Concrete Institute
