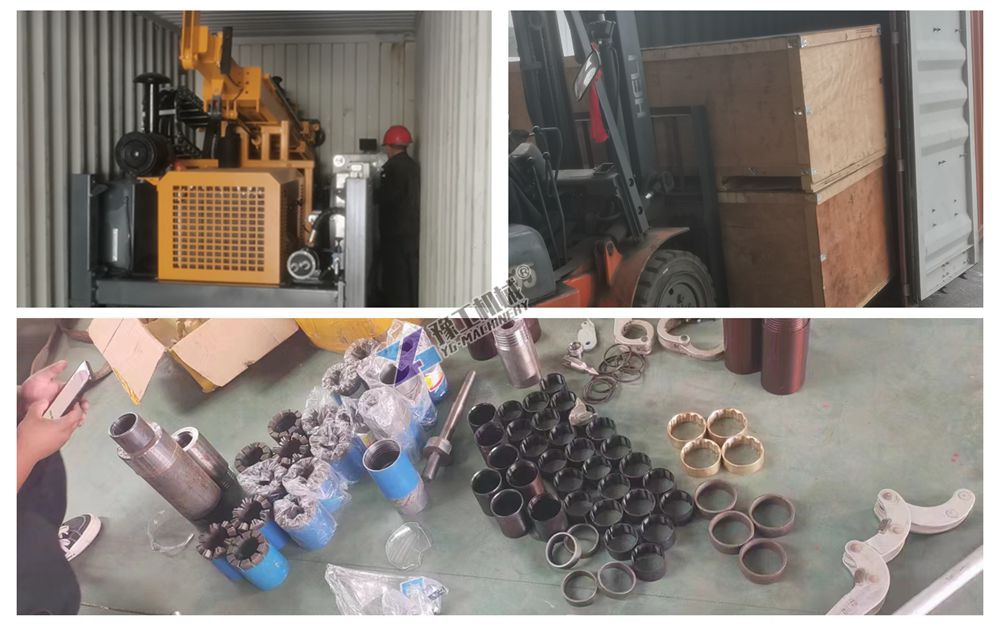

Yugong has successfully exported its fully hydraulic core drilling rig, the YG-600, to a Golombian customer. This advanced rig features a compact structure and is designed for stability and reliability, capable of drilling up to 600 meters deep with a hole diameter ranging from 100 to 300 mm. It is equipped with a powerful 92KW engine and operates efficiently in various geological conditions, making it ideal for open-pit mining and quarry operations.
The YG-600 fully hydraulic core drill is suitable for a variety of high-efficiency drilling methods such as diamond rope coring, impact rotary, directional drilling, reverse circulation continuous coring (sampling), etc. It can also be used for water well, anchor drilling, and engineering geological drilling processes.

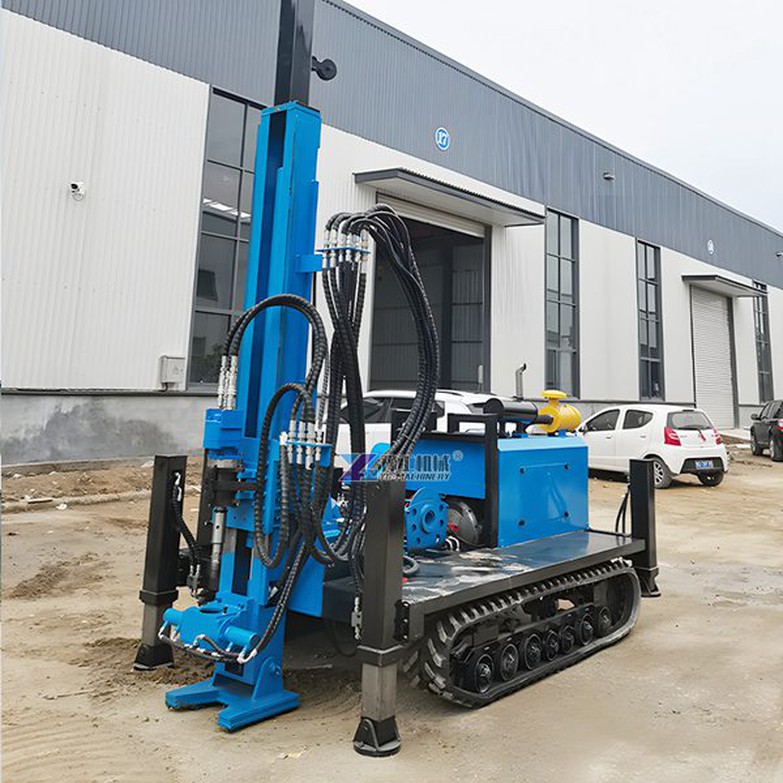

Technical Informations of YG-600 Fully hydraulic core drilling rig
| Model | YG-600S/GL |
| Drilling depth | 200-600-650m |
| Drilling angle | 45~90° |
| Max. Torque | 1000N.m |
| Rated power/speed | 92kW/ 2400r/min |
| Hydraulic Mud pump flow | 30-90(L/min) |
| Hydraulic Mud pump power | 4-7(MPA) |
| Walking speed | 3.5 km/h |
| Climbing angle | Max. 45° |
| Transport Dimension | 4000*2000*1800mm |
| Weight | 4.5/5.5T |
Main features

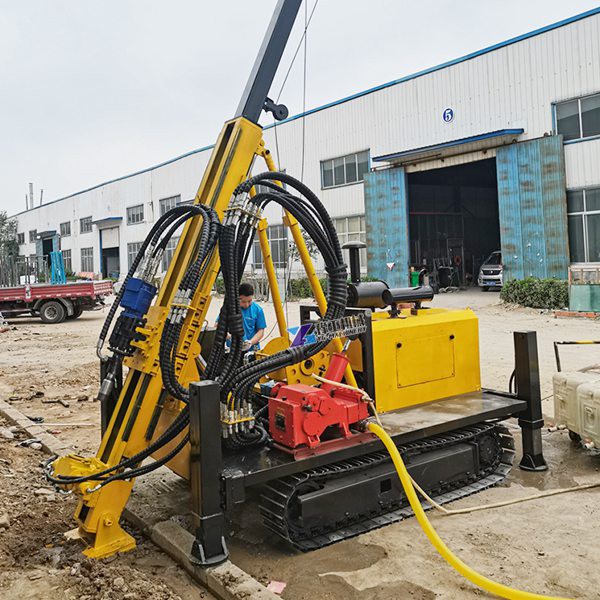

Fully hydrualic core drilling rig machine for mining
Fully hydraulically driven, easy to operate; Modular design, each component module is easy to assemble and disassemble;
High degree of mechanization, which is conducive to improving drilling efficiency and reducing accidents in the hole;
Feed control has working states such as pressurized drilling, decompression drilling, deadweight drilling, weighing, fast feed and lifting, which can meet the needs of different drilling construction processes;
The crawler is equipped with hydraulic brakes and parking brakes, which is safe and reliable when stopping on the slope. The wired (wireless) control walking handle increases the safety of the operator;
The drilling rig design uses a large number of standard parts and general parts, such as winches, hydraulic system components, filters, etc., which makes the drilling rig design highly standardized and universal, which is conducive to drilling rig production and easy to manage;
The drilling rig has complete electrical and hydraulic instruments, and has an automatic alarm function; Equipped with hydraulic hole holder, hydraulically driven mud pump and hydraulically driven mud agitator, no other auxiliary power is needed during the drilling process.
