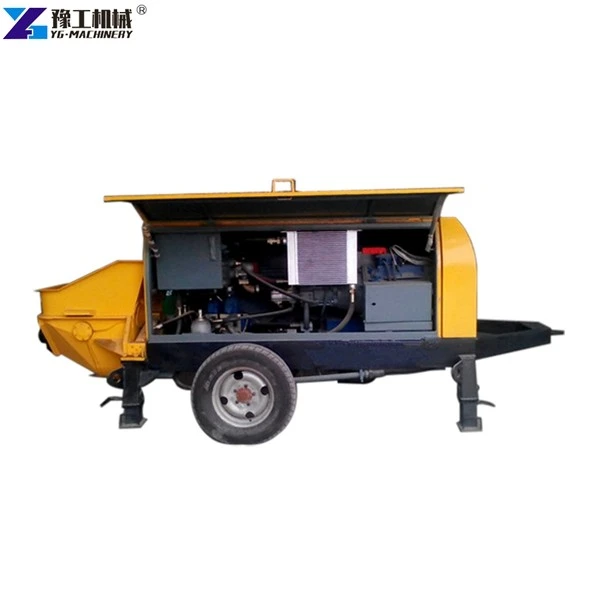

Portable Shotcrete Machine
Technical Parameters
|
Model |
YG-10 |
YG-20 |
YG-30 |
YG-40 |
YG-50 |
|
Engine |
Electric/Diesel |
Electric/Diesel |
Electric/Diesel |
Electric/Diesel |
Diesel, 6102 |
|
Power |
15kw |
22kw |
37kw |
45kw |
55kw |
|
Max. aggregate size |
15mm |
20mm |
30mm |
40mm |
50mm |
|
Conveying Capacity |
6m³/h |
10-15m³/h |
15-30m³/h |
30-40m³/h |
40-50m³/h |
|
Horizontal conveying distance |
100-120m |
100-120m |
150-200m |
200-350m |
200-300m |
|
Vertical conveying distance |
20-50m |
50-60m |
80-100m |
120-140m |
120-140m |
|
Pipe diameter |
80-100mm |
80-100mm |
80-100-125mm |
80-100-125mm |
100-125-150mm |
|
Outlet diameter |
80mm |
100mm |
125mm |
125-150mm |
150mm |
|
Material tank diameter |
100mm |
120mm |
140-160mm |
160-180mm |
200mm |
|
Dimension |
1.8x0.7x1.1m |
2.8x1.1x1.3m |
4*1.4*1.5m |
4*1.5*1.5m |
4.2*1.8*1.7m |
|
Weight |
600kg |
900kg |
1800kg |
2500kg |
3000kg |
Products Description
A portable shotcrete machine is a machine used to transport liquid concrete from the mixer to the location where it's needed, typically at construction sites. Unlike mobile concrete pumps, which are mounted on trucks for easy mobility, stationary concrete pumps are fixed in place. They are often used for projects that require pumping concrete over long distances or to heights, such as high-rise buildings, tunnels, or bridges.
These pumps consist of a hopper (where the concrete is loaded), a pumping system (usually piston or hydraulic), and a series of pipes or hoses that carry the concrete to the desired location.
Key features of a stationary concrete pump
This machine is capable of pumping large quantities of concrete at a time. It can pump concrete over long distances (horizontally or vertically) thanks to the high pressure generated. The pump stays in one location, with hoses and pipes extended to where the concrete is needed. It is ideal for High-Rise Construction and can be used for delivering concrete to upper floors of skyscrapers, bridges, and tunnels. The machine can work well with different types of concrete, from standard mixes to self-compacting or highly viscous varieties.
portable shotcrete machines for Construction
Your next project deserves the best-let us help you get there.
A portable shotcrete machine operates by transferring liquid concrete from a hopper through a system of pipes and hoses to the desired location using high-pressure hydraulics.
First, freshly mixed concrete is poured into the hopper, where an agitator keeps it moving to prevent segregation while a metal grate filters out large aggregates. Inside the pump, two hydraulic cylinders work in tandem-one piston pulls concrete from the hopper while the other pushes it into the pipeline.
A swing valve (S-valve) or rock valve alternates the flow direction between the pistons, ensuring a continuous pumping cycle. The concrete is then propelled through steel or flexible hoses, allowing it to travel horizontally over long distances or vertically for high-rise construction. At the pour site, workers guide the concrete into formwork, foundations, or structural elements with precision.
Once the job is complete, the pump system is flushed with water and cleaning balls to prevent blockages and ensure smooth operation for future use. This efficient process allows stationary concrete pumps to deliver concrete quickly, accurately, and safely, making them ideal for large-scale projects such as tunnels, skyscrapers, and infrastructure developments.
