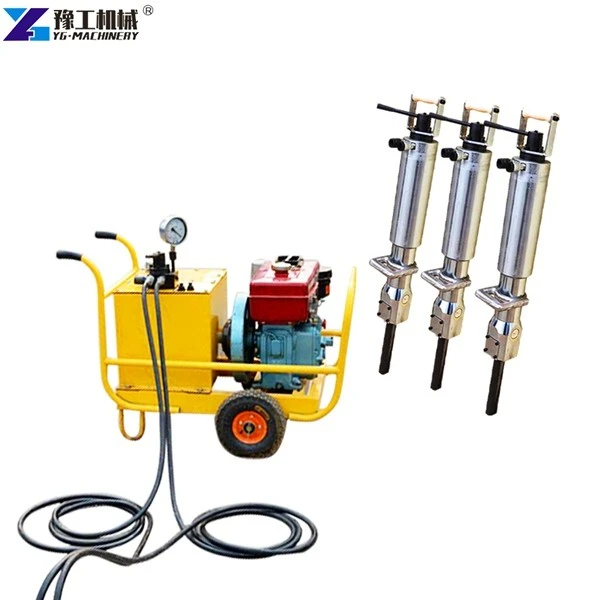

Hydraulic Rock Splitter
hydraulic rock splitting
What is a hydraulic rock splitter? Hydraulic rock splitting machine, also known as hydraulic stone splitter machine, is a machine used to split materials. It is mostly used in construction, decoration, engineering construction, and ore mining.
The hydraulic rock splitter has the characteristics of small size, light weight and large splitting force (maximum splitting force can reach 1000 tons). It can be easily dismantled and split indoors or in narrow places; it can also operate underwater.
technical parameters
| Model | YG-250 | YG-350 | YG-450 |
| Power | Diesel Power Pack | ||
| Diesel Power Pack | Changchai 6hp or 8hp | ||
| Hydraulic Power Unit | Pressure Adjustable 10-60Mpa | ||
| Splitter Length (mm) | 1000 | 1100 | 1200 |
| Wedge Length (mm) | 250 | 350 | 450 |
| Wedge Weight (kg) | 30 | 36 | 43 |
| Piston Stroke (mm) | 90/220 | 90/220 | 90/220 |
| Drilling Depth (mm) | >500 | >700 | >900 |
| Drilling Diameter (mm) | 42 | 50 | 55 |
| Crack Width (mm) | 10-20 | 10-20 | 10-20 |
| Splitting Time (s) | 10-15 | 10-15 | 10-15 |
| Splitting Force (T) | 800 | 900 | 1000 |
Want to learn more about rock splitter for sale? Fill out the inquiry form and we will provide you with a personalized quote and advice!
Low on noise and dust
Unlike jackhammers or other heavy machinery, hydraulic splitters operate quietly, making them suitable for residential areas, hospitals, schools, and other noise-sensitive environments.
Lightweight & Portable
Hydraulic rock splitters are lightweight and portable, making them ideal for narrow areas where large machinery cannot operate. They can be easily transported and handled by a single operator.
Powerful & Efficient
Effective in block quarrying where precise control over the splitting direction is needed to minimize waste and protect surrounding material.
Drill a hole of specific depth and diameter in the stone or concrete. Then place the splitting wedge into the drilled hole. Activate the hydraulic pump to generate high pressure. The hydraulic rock splitter applys hydraulic force to a wedge inserted into a drilled hole, effectively splitting rock or concrete from the inside out. They are particularly useful in urban environments due to their low noise and vibration levels
Advantages of hydraulic rock splitter for sale
The hydraulic splitter has almost no noise and vibration during operation and is suitable for use in cities and sensitive areas.
The splitting process is fast and usually only takes a few seconds to complete, greatly improving work efficiency.
The operator can precisely control the direction and force of the split, reducing damage to surrounding materials.
It is used for demolition of structures such as buildings, bridges, tunnels, etc.
Working on site
Contact us to get the hydraulic rock splitter price
Henan Yugong Machinery Co., Ltd. is a prominent machinery manufacturing enterprise established in 2005, specializing in the research, development, production, and sales of various construction and mining equipment.
The hydraulic rock splitters provide a powerful, efficient, and safe solution for breaking hard materials in confined spaces Besides the hydraulic rock splitter, we provide also rock splitter for excavator, piston rock splitter, rock drill splitter, rock drill hammer, hydraulic rock hammer machine.
