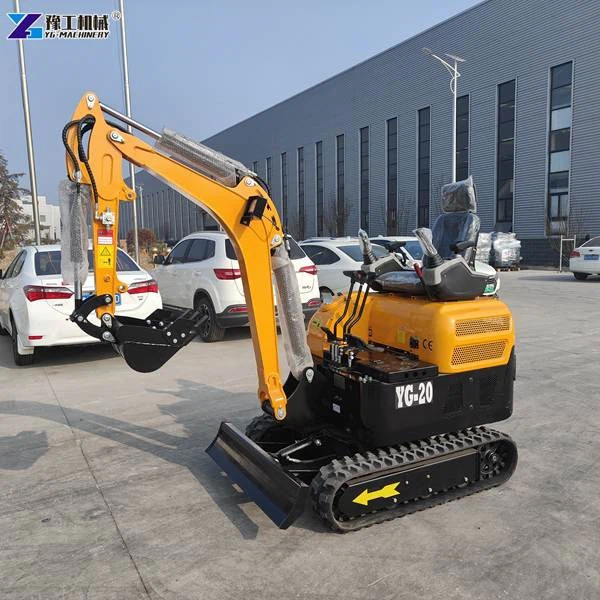

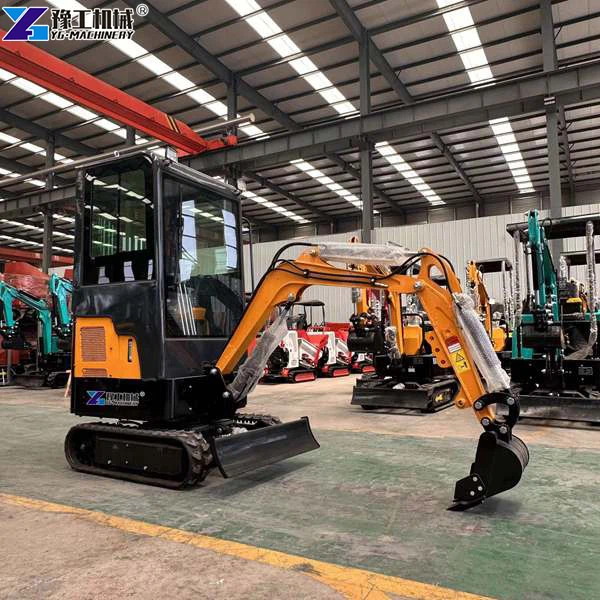

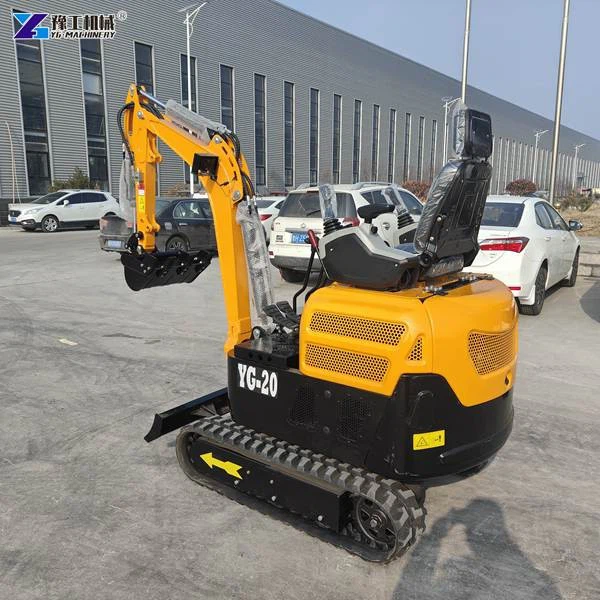

2 Ton Excavator

The 2-ton excavator engine features high power, low noise, low emissions, low fuel consumption, and easy maintenance. It uses a YANMAR engine, known for achieving top performance, noise levels, and emissions compliant with the highest European standards.

Send Inquiry

Product Introduction

2 ton mini excavator Technical parameter

Model		YG-20
Mini-excavator weight		2000kg
Bucket capacity		0.05m³
Working device form		Backhoe
Engine	Model	Kubota
	Delivery capacity	0.499
	Rated output power / speed	7.6/3000 kw/r/min
	Maximum torque	25/2500N.m/r/min
Speed	Maximum travel speed	1.2 km/h
	Slewing speed	9 rpm
	Maximum climbing ability	30°
	Maximum digging force	6.5 kN
Caterpillar band part	Ground pressure	0.4 kgf/cm²
	Caterpillar band	Material-Rubber
	Tension type	Grease cylinder
Hydraulic pump	Form	Gear pump
Hydraulic fluid capacity	Working pressure	16 MPa
	Flow	18/22/24 L/min
	Hydraulic tank capacity	18 L
	Engine oil capacity	1.65 L
	Fuel tank capacity	5.5 L
Overall size	Total Length (transport time)	2200 mm
	Total width (transportation / operation)	750 mm
	Total height (with / without ceiling)	2285(2030) mm
	Bulldozer blade width	937 mm
	Bulldozer blade height	210 mm
	Caterpillar band center distance	746 mm
	Standard caterpillar band board width	180 mm
	Platform clearance	405 mm
	Standard bucket width (with / without side teeth)	380/330 mm
	Total length of caterpillar band	1200 mm
Scope of work	Maximum excavation height	2490 mm
	Maximum unloading height	1745 mm
	Maximum excavation depth	1725 mm
	Maximum vertical arm excavation depth	1655 mm
	Maximum excavation distance	3030 mm
	Minimum turning radius at front end	1490 mm
	Maximum excavation ground distance	2940 mm
	Maximum bulldozing height	170 mm
	Maximum bulldozing height	240 mm

The 2-ton mini excavator for sale is equipped with a YANMAR engine, ensuring top-tier performance, minimal noise, and emissions compliant with the strictest European standards. It typically comes with rubber or steel tracks, offering excellent mobility on both hard and soft surfaces. The most common type is the crawler excavator, designed for versatile use across various terrains.
This 2-ton digger is ideal for small-scale projects including gardens, farmland, municipal works, and more.

Optional Attachments

The 2-ton mini excavator offers a range of optional attachments to meet diverse construction needs:

Digging bucket for excavating and loading soil, sand, gravel, and other materials.
Grapple for handling loose materials such as wood chips, garbage, and construction waste.
Hammer for breaking concrete structures, rocks, and hard materials.
Auger for drilling tasks.
Cleaning bucket for clearing ponds, ditches, rivers, and other water bodies.
...

What is the 2 ton mini excavator price? Where can I buy mini excavators?

The price of a 2-ton mini excavator varies based on brand, model, and configuration, typically ranging in the hundreds of thousands of dollars. While price is important, choosing reliable brands and suppliers ensures machine quality and excellent after-sales service.

YG has over 20 years of experience in excavator manufacturing, offering OEM and ODM customized products tailored to your needs. Feel free to contact us with any special requirements.

Small excavators play a crucial role in construction projects, from earth excavation to pipeline installation and gardening tasks. The 2-ton mini excavator guarantees efficient and convenient operation, contributing to the success of engineering projects. Request a quote now for more details.
