Mini Spider Crane
|
Model |
YG-3 |
YG-5 |
YG-8 |
|
Specification |
3t |
5t |
8t |
|
Maximum working radius |
8.83m×0.15t |
14m×0.5t |
16.5m |
|
Maximum above-ground head |
9.9m×0.7t |
16.8m |
18m |
|
Winch device |
Hook Speed |
0-8m/min(4 rope) |
12m/min(4 rope) |
|
Rope diameter |
φ8mm×45m |
Φ11mm×80m |
Φ11mm×80m |
|
Telescopic system |
Boom Type |
5-section boom, pentagonal structure |
5-section boom, pentagonal structure |
|
Boom Length/Time |
3.1m-9.2m/20sec |
12.3m/54sec |
12.3m/54sec |
|
Up and down |
Boom Angle/Time |
0°~78°/13sec |
0°~78°/13sec |
|
Slew system |
Slew Angle/Speed |
0-360°continuous/60sec |
0-360°continuous/38sec |
|
Traction system |
Walking Way |
Hydraulic motor drives |
Hydraulic motor drives |
|
Walking Speed |
0~2.5km/h |
0~2.5km/h |
0~2.5km/h |
|
Grade Ability |
(25°)36% |
(25°)36% |
(25°)36% |
|
Operating system |
Operation type (Boom/outrigger) |
Manual operation, manual walking(remote control option) |
Manual operation, manual walking(remote control option) |
|
Operating characteristics |
Manual operation, remote control |
Manual operation, remote control |
Manual operation, remote control |
|
Transport parameters |
L*W*H(mm) |
2950*980*1560 |
5000*1500*1900 |
|
Total weight(kg) |
2700 |
6200 |
7200 |

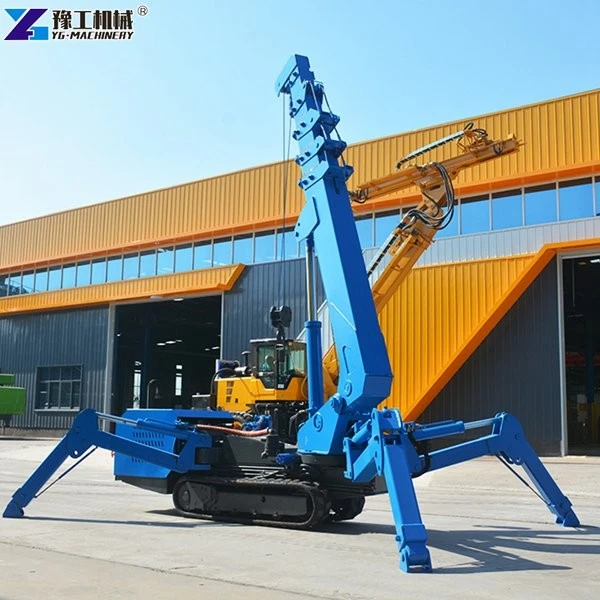

Mini spider cranes are types of mini lifting equipment typically equipped with tracked or wheeled chassis, allowing them to traverse various terrains and fit into tight spaces. YG provides 3-ton spider cranes, 5-ton small tracked cranes, and 8-ton crawler spider cranes.
Features
1. Spider cranes are suitable for operations in confined spaces.
2. They are fully rotating, boom-type cranes driven entirely by hydraulics.
3. The main arm typically has 4-5 sections with a U-shaped cross-section. The single-stage telescopic cylinder and wire rope mechanism enable synchronous telescopic extension of the main arm.
4. Marking lines and alarms are used to ensure double limits on boom extension and retraction.
5. Cranes are equipped with radiators, enhancing performance during high-temperature operations in summer.
Applications of mini lifting crane
This mini lifting crane is ideal for lifting materials, equipment, and components on construction sites, especially in confined spaces or at heights. It is perfect for accessing elevated areas and performing maintenance tasks such as HVAC installation, equipment repairs, and maintenance in commercial buildings or industrial facilities.
What is mini crane lift price?
The price of mini spider cranes can vary based on factors such as lifting capacity, boom configuration, features, and manufacturer.
Ready to revolutionize your lifting and maneuvering capabilities? Leave us your inquiry and let our mini spider crane machines take your operations to the next level.
