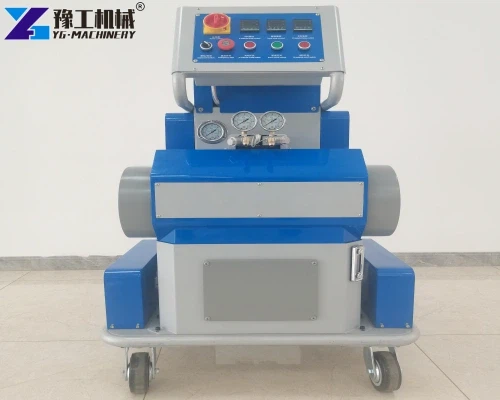

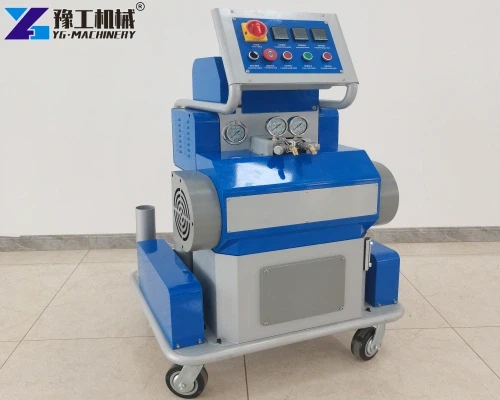

Polyurethane Spraying Machine
Wide-Ranging Applications of Polyurethane Spraying Machines
The polyurethane spraying machine has extensive applications, thanks to the superior properties of polyurethane materials. Its main uses include:

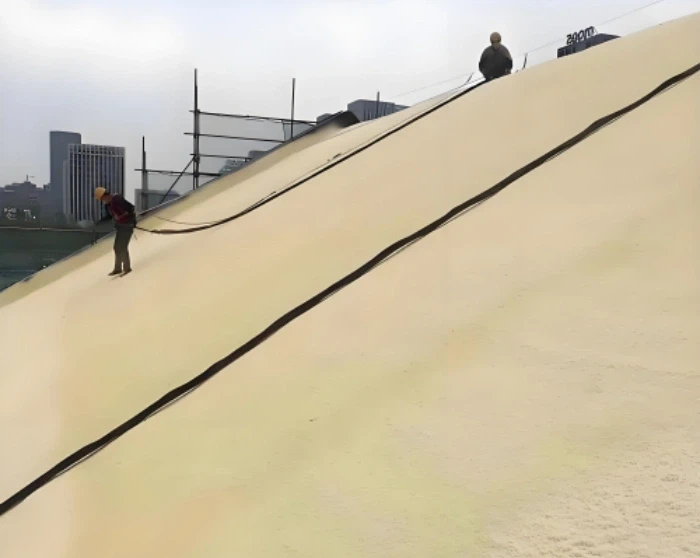

Building Insulation
Used for thermal insulation spraying on building exterior walls and roofs, achieving integrated insulation and waterproofing.

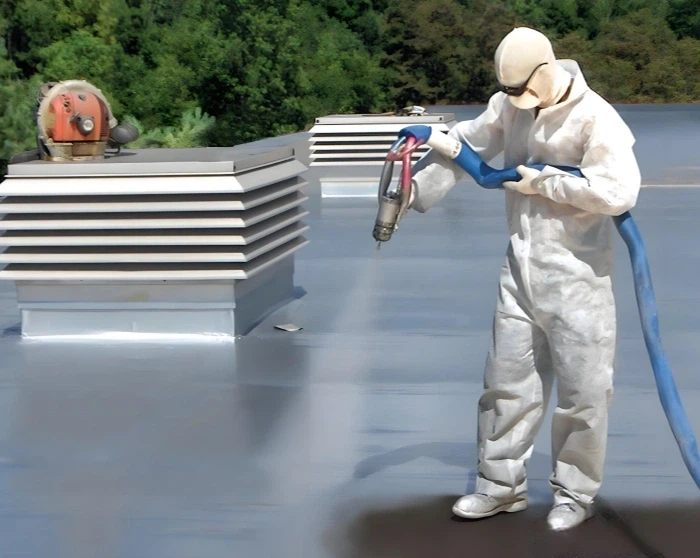

Industrial Corrosion Protection
Provides long-lasting polyurea anti-corrosion coatings for industrial equipment like storage tanks and pipelines, a task where the function of a polyurea coating machine is crucial.

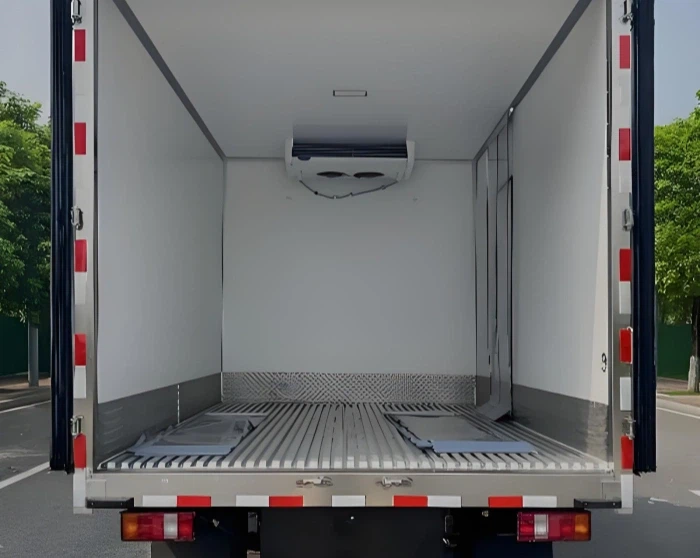

Cold Chain Logistics
Spraying polyurethane rigid foam on cold storage walls and roofs is key to achieving high-efficiency, energy-saving insulation.
Other Fields
Also commonly used in acoustic insulation projects, automotive parts manufacturing, and ship cabin insulation.
technical parameters of the polyurethane spraying machine
|
Model |
Host heating power(KW) |
Pipe heating power(KW) |
Heating power(KW) |
Motor Power |
Total power(KW) |
Drive mode |
output flowKg/Min |
Support pipeline(m) |
Power(V) |
|
YG-III(H) |
7 |
2.5 |
9.5 |
/ |
9.5 |
Pneumatic |
2-10 |
75 |
380 |
|
YG-Q2600 |
9 |
2.5 |
11.5 |
/ |
11.5 |
Pneumatic |
2-10 |
90 |
380 |
|
YG-III(D) |
8 |
1 |
9 |
/ |
9 |
Pneumatic |
2-10 |
30 |
380 |
|
YG-Q2600(D) |
10 |
1 |
11 |
/ |
11 |
Pneumatic |
2-10 |
30 |
380 |
|
YG-H5600(D) |
18.5 |
1 |
19.5 |
3.75 |
23.5 |
Hydraulic |
2-12 |
30 |
380 |
|
YG-H-T40(D) |
18.5 |
1 |
19.5 |
3.75 |
23.5 |
Hydraulic |
2-12 |
30 |
380 |
|
YG-Q30 |
12.5 |
2.5 |
15 |
/ |
15.5 |
Pneumatic |
2-10 |
90 |
380 |
|
YG-Q40 |
14.5 |
3.5 |
18 |
/ |
18 |
Pneumatic |
2-10 |
90 |
380 |
|
JX-H5600 |
18.5 |
3.5 |
22 |
3.75 |
26 |
Hydraulic |
2-12 |
105 |
380 |
|
YG-H-T40 |
18.5 |
3.5 |
22 |
3.75 |
26 |
Hydraulic |
2-12 |
105 |
380 |
|
YG-H5600(T) |
21 |
4 |
25 |
3.75 |
29 |
Hydraulic |
2-8 |
120 |
380 |
|
YG-H-T50 |
21 |
4 |
25 |
3.75 |
29 |
Hydraulic |
2-8 |
120 |
380 |
Core Advantages & Working Principle
Why choose a high-pressure polyurethane spraying machine? Because it delivers revolutionary application quality.
Excellent Working Principle
During operation, two material pumps draw ingredients from the Component A and B raw material drums respectively. The materials are metered in precise proportions (typically 1:1) within the main unit and then transported to the spray gun via heated hoses. Under high pressure, the two material streams collide at high speed and mix violently in the gun's mixing chamber, achieving instant and homogeneous blending before being atomized and sprayed from the nozzle. This high-pressure airless spraying technique ensures a dense, non-porous coating.
High-Quality Coating
High-pressure mixing creates a fine, uniform spray layer with a smooth, particle-free surface that is clean and dries without air exposure.
Efficient Insulation & Waterproofing:
Spray-formed polyurethane rigid foam has a high closed-cell content, offering both excellent thermal insulation and strong waterproofing and sealing properties.
Strong Adaptability & Stability
Advanced hydraulic systems minimize pressure imbalance, ensuring constant output ratio. Built-in heating systems maintain raw materials at the optimal temperature even in cold environments.
