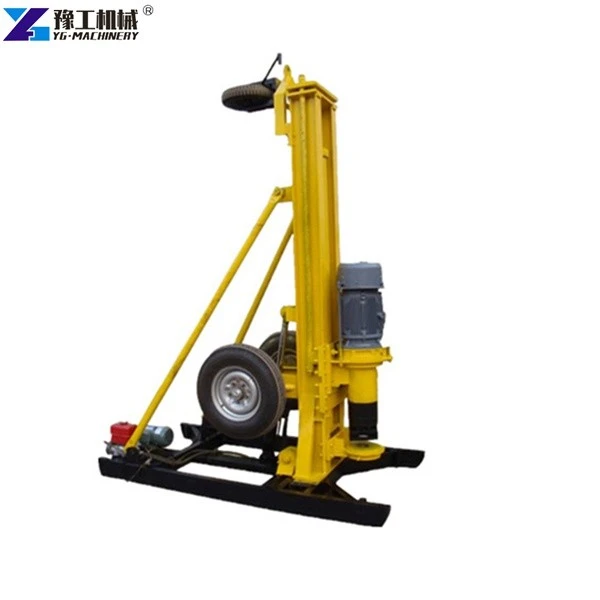

This small portable water well drilling rig uses hydraulic systems for efficient drilling and can handle a variety of soil conditions.
Drilling Depth: 50-120 meters
Engine: electric, diesel, or gasoline engine
Easy to transport to various job sites.

Send Inquiry

Product Introduction

A small mobile water well drilling rig is a portable device specially used for drilling groundwater wells. This drilling rig is small in size, easy to transport and install, and is very suitable for water well drilling operations in remote areas or areas with complex terrain.

Technical Parameters

Model	YGX220	YGX280
Engine	Diesel	Diesel
Drilling Depth	120-200m	120m
Drilling Diameter	20-280 mm	20-300 mm
Motor Power	8 HP	8/12/20HP
Drilling Method	Percussive and Rotating Type	Percussive and Rotating Type
Pump Power	3.5 HP	4.0HP
Drilling Rod Diameter	51 mm	51 mm
Drilling Rod Length	1500 mm	1500 mm
Rod Change Method	Full Automatic Screw Thread	Full Automatic Screw Thread
Dimensions	8008002700 mm	8008002700 mm
Weight	200 KG	350 KG

Request A Free Quote Today

Various designs

Small mobile water well drilling rigs can be moved by tires or tracks and easily transported to different construction sites. You can use gasoline, diesel engines or electric drive, and choose the appropriate power source according to the power supply on site.

Diesel portable water well drill rig
Electric 40m well drill rig
Crawler water drilling machine
100m portable drilling rig

Yugong Small Water Well Drilling Machine

This portable water drilling machine can drill up to 200 meters depth. Diesel or electric engine to choose from.

Multipurpose Drilling Machine

Small well drilling rigs can be equipped with different types of drill bits according to different geological conditions and water source requirements to adapt to various drilling tasks.

This portable water well drilling machine is suitable for drilling in soil layers, quicksand layers and a small amount of rock and soil layers.

Fast drilling speed

Small well drilling rigs usually use advanced drilling technology, which can complete drilling tasks in a shorter time and improve work efficiency.

By replacing the drill bit, you can drill 1-inch, 1.5-inch, 4-inch plastic pipes and PVC pipes with different diameters.

Powerful Engine

This machine is available in electric, gasoline and diesel versions to meet customer needs.

The portable water well drilling rig for sale is usually equipped with hydraulic systems and automatic control systems, which are simple to operate and easy to use.

Small and Portable

The small drilling machine occupies a small area (1 square meter), is light and can be moved by one person. You can install and operate indoors or outdoors. You can also installe it on a small tricycle and travel around the village.

Applications of portable well drilling machine for sale

Groundwater development: Small well drilling machines can effectively develop groundwater resources to meet the needs of domestic, agricultural and industrial water.

Hydrogeological exploration: When conducting hydrogeological exploration, small well drilling machines can help researchers obtain information such as groundwater level, flow and water quality.

Construction engineering: In construction engineering, small well drilling machines can be used for pile holes, foundation drilling, etc. to ensure the stability and safety of buildings.

Bridge foundation drilling: In bridge construction, small well drilling machines can be used to drill holes for infrastructure construction.

Request A Free Quote Today

31000+ Real user cases

Our portable water well drilling machines are exported to many countries, including the United States, Canada, France, Mexico, Brazil, Chile, Saudi Arabia, Kenya, Sudan, DR Congo, Ghana, Mozambique, Senegal, etc.

User Evaluation

I bought this small well drilling machine, which can drill more than 100 meters without any problem. Now I can help others drill wells and make money. I just drilled a well and the efficiency is quite good. The diesel engine is also very good, with enough power and fast drilling speed.

Rickaz

Owner of a small drilling company

I have never operated a well drilling machine before, but it is really easy to use the YGX-280 portable electric well drilling machine. The motor can be multi-speed variable and can be reversed. As long as the drilling speed and pressure are adjusted according to the geological conditions, the well drilling task can be completed smoothly. Even a novice can quickly get started

Mmapula

Engineer

I live in an area with challenging geological conditions. This machine has exceeded my expectations. It drills through hard rock and clay with minimal effort, and the performance has been consistent. Easy to transport. I highly recommend this drilling rig for anyone facing tough drilling conditions.

Rob

Individual buyer

What is the working principle of a small well drilling rig?

Small well drilling rig generally uses the pump suction reverse circulation working principle. Under the action of atmospheric pressure, the circulating fluid flows into the bottom of the well through the sedimentation tank, and the turntable drives the drill pipe to drive the drill bit to rotate for drilling. The mud pump suction creates negative pressure, sucking the debris mud into the inner cavity of the drill pipe, and then discharges it from the sedimentation tank, forming a circular drilling process.

Request A Free Quote Today

32684

Working Cases

19+

years experience

300+

staffs

7/24

online services

How To get a mini borehole drilling machine?

If you are looking for a portable well drilling rig for sale, please feel free to contact us. We would be happy to recommend a suitable model for your requirements.

Our address

26/27th Floor, Block B, Jingsha Plaza, Jingguang Road, Erqi District, Zhengzhou

Phone Number

+86 13837112713

E-mail

contact@yg-equipment.com

Quick delivery

Various logistics modes are available

After-sales services

Manual, installation video

Secure payment

100% secure payment

24/7 Support

Dedicated support

FAQ

01.What geological conditions are suitable for small well drilling rigs?

Small drilling rigs are suitable for a variety of geological conditions, including soft soil, hard soil and rock. Different types of drill bits can cope with different geological conditions.

02.How does the cost of a portable well drilling equipment?

Please feel free to contact us to get the price. WhatsApp/Tel 008613598866720.

03.What payment methods do we support?

We accept L/C, T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc.

04.What's the delivery time of the mini hydraulic borewell machine?

3-5 days.

05.What kind of warranty and support do we provide for the portable water well drilling equipment?

All Yugong mini borewell machines come with a 1-year comprehensive warranty. The warranty is valid from the date of delivery and does not cover damage due to misuse, improper maintenance, or accidents.
