Trailer Mounted Water Well Drilling Rig
The trailer-mounted water well drilling rig is a highly portable and efficient solution for drilling deep, clean water wells in remote or urban locations. Ideal for agriculture, rural water supply, and industrial projects, this rig offers a cost-effective and versatile solution for professional drillers and independent contractors.
Send Inquiry
Product Introduction

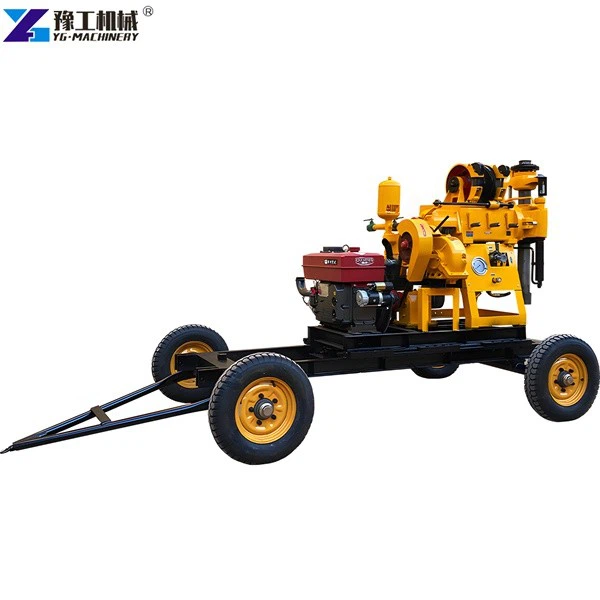

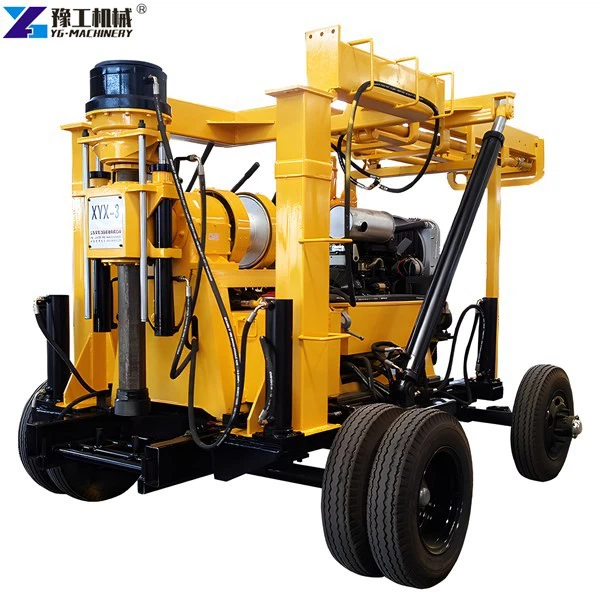

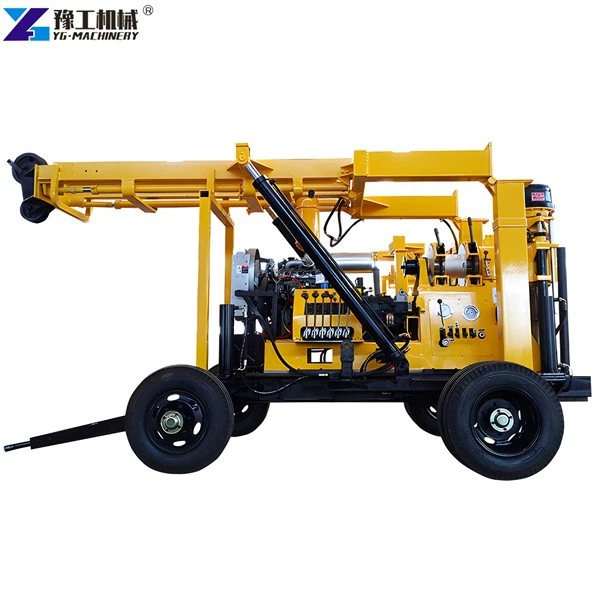

Trailer Mounted Water Well Drilling Rig
Trailer Mounted Water Well Drilling Rigs For Sale
| Model | YG-130Y/130YY | YG-180Y/180YY | YG-200Y/200YY |
| Drill hole depth | 130m | 180m | 200m |
| Maximum opening diameter | 220mm | 220mm | 325mm |
| Final hole diameter | 75mm | 75mm | 75mm |
| Drill pipe diameter | Φ42mm,50mm,60mm | Φ42mm,50mm,60mm | Φ42mm,50mm,60mm |
| Borehole inclination | 90°- 75° | 90°- 75° | 90°- 75° |
| Power(diesel engine) | 13.2/2200kw/r/min | 13.2/2200kw/r/min | 15/2200kw/r/min |
| Motor | 22KW | 36kw | 42kw |
| Vertical shaft | |||
| Vertical spindle speed | 142,285,570r/min | 130,480,730,1045r/min | 130,480,730,1045r/mi |
| Vertical stroke | 450mm | 450mm | 450mm |
| Hoist | |||
| Single line lifting capacity | 20KN | 21KN | 25KN |
| Single rope lifting speed | 0.41-1.64m/s | 0.35-2.23m/s | 0.12-0.95m/s |
| Drum diameter | Φ140mm | Φ140mm | Φ140mm |
| Diameter of wire rope | Φ9.3mm | Φ9.3mm | Φ13mm |
| Wire rope capacity | 27m | 27m | 35m |
| Mud pump | |||
| Model | BW160 | BW160 | BW250 |
| Flow | 160L/min | 160L/min | 250L/min |
| Maximum pressure | 12Mpa | 12Mpa | 17Mpa |
| Reciprocating frequency | 93times/min | 93times/min | 93times/min |
| Water inlet diameter | Φ51mm | Φ51mm | Φ75mm |
| Water to exit diameter | Φ32mm | Φ32mm | Φ50mm |
| Drilling Tower | |||
| Rated load | 18Ton | 18Ton | 18Ton |
| Effective height | 6.5m | 7.5m | 9m |
| Tower leg spec. | Φ73mm | Φ73mm | Φ73mm |
