1 Ton Mini Excavator
The 1-ton excavator for sale has a small size, making it ideal for light construction and landscaping projects where space is limited.
Technical Information
|
Model |
YG-10 Crawler excavator |
|
Operation weight |
820KG |
|
Engine(customized) |
Coop192 G2, E5+50,B&S-gas+75 |
|
Power |
7.6kw |
|
Hydraulic cylinder,pump,valve(customized) |
Warranty 1 years |
|
Bucket capacity |
0.03CBM |
|
Rotation speed |
11r/min |
|
Overall dimension(L*W*H) |
2700mm*910mm*1480mm |
|
Crawler grounding length |
1200mm |
|
Crawler width |
180mm |
|
Max digging height |
2680mm |
|
Max discharge height |
1700mm |
|
Max digging depth |
1600mm |
|
Max digging radius |
2850mm |
|
Mini turning radius |
1290mm |
|
Platform clearance to ground |
370mm |
|
Swing angle |
360° |
|
Climbing gradient |
30° |
|
Bulldozer Max depth |
190mm |
|
Bulldozer Max raising height |
260mm |
|
Walking speed |
2.5km/h |
|
Bucket digging force |
10.7KN |
|
Cab and engine can be customized |
|
Features
- It is commonly used in projects with limited space, such as residential construction, utility work, and landscaping.
- Optional engines include Coop, Cummins, Kubota, YANMAR, Mitsubishi, etc. If you have specific requirements, please consult with our experts.
- Easy to operate. Optional features include a comfortable operator cabin and ergonomic controls.
- The 1-ton excavator can help you complete tasks quickly and efficiently.
- The small excavator can be easily transported to and from the job site, which is beneficial for contractors who need to move the machine frequently or transport it to different locations.
Applications
1-ton mini excavators have a wide range of applications due to their versatility and compact size.
- They can efficiently dig trenches for utilities such as water lines, electrical cables, and drainage systems.
- They can be used to dig and level the ground, remove small stumps or rocks, create garden beds, and shape the terrain.
- 1-ton excavators can also excavate foundations for small buildings or structures.
- When equipped with a hydraulic breaker, the 1-ton mini excavator can break up concrete, remove old structures, and clear debris, among other tasks.
- Mini excavators can also handle material handling tasks when fitted with appropriate attachments.

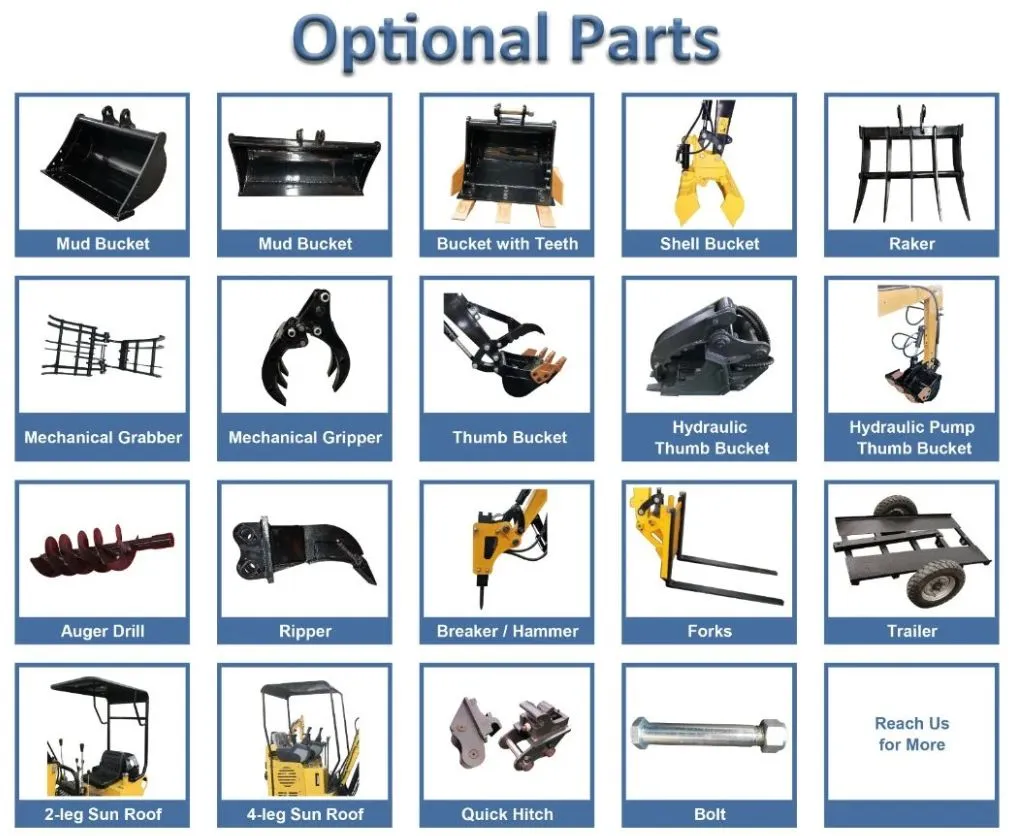

1 ton excavator attachments
The 1-ton mini excavator for sale can be equipped with various attachments to achieve multiple functions such as excavation, crushing, ditch cleaning, and drilling.
Below are some optional 1 ton excavator attachments:

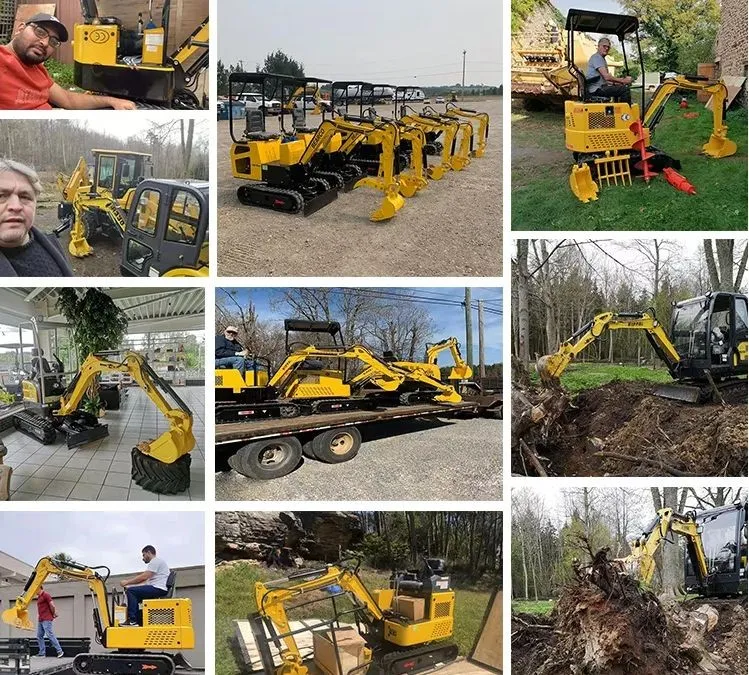

Customer feedback
Thank you guys for the great machine! And awesome service afterwards!!! This excavator made my job easier and saved me time building the foundations of my house.
From The Armstrong Family
